Round Drip Irrigation Pipe Production Line
Round Drip Irrigation Pipe Production Lines: Precision Engineering for Sustainable Agriculture
In an age where climate shift is commonplace, water is scarce, and the demand for food is on the rise, effective irrigation solutions are no longer optional—ad they're necessary. At the forefront of this movement is round drip irrigation pipe, which delivers water directly to plant roots with precision accuracy, saving water and growing healthier plants.
These pipes allow for sustainable, high-yielding agriculture through the minimization of evaporation loss as well as having high water-use efficiency. But to produce them on a regular basis, with consistent quality farmers and farm contractors can rely on, you need a manufacturing process that's as advanced.
Round drip tubes are made to operate under diverse field conditions. With nominal diameters of 16 mm, 20 mm, and 25 mm and a wall thickness of 0.9 mm to 1.2 mm, they can serve multiple crops, configurations, and soils. They are made from high-grade polyethylene via precise extrusion, and pipes have uniform dripper spacing, rates of flow, and mechanical strength.
Our lines allow you to meet customer demand for flexibility and reliability, whether you're servicing small farms or large-scale agricultural developments.
Integrated Automation and High-Speed Operation
Our lines incorporate fully automatic dripper insertion, in-line extrusion, and real-time quality control—all under the control of one PLC-based HMI control panel. The easy-to-use interface enables operators to monitor, modify, and optimize each stage of the process with minimal effort.
Key features are:
- Automated dripper feeding and insertion
- Inline punching with adjustable spacing
- Servo-controlled pipe winding for accuracy to the last detail
- Remote assistance via internet connectivity
- Camera-assisted quality inspection and fault recording
Our lines run at 80 meters per minute at 20 cm dripper spacing, and with automatic coiler, production rates in excess of 120 meters per minute are attainable—enabling you to produce more without sacrificing quality.
Real-Time Monitoring for Unrivaled Quality
Every parameter—right from dripper pitch and rate of production to total run-time and fault logs—are tracked real-time. Not only does this allow instant troubleshooting, but it also allows long-term process optimization, reducing downtime and increasing ROI.
With the remote support feature, our technical experts can intervene and resolve the issue in a flash—where you are anywhere in the world.
Why Choose Our Round Drip Irrigation Pipe Manufacturing Lines?
- Pipe diameters: 16 mm, 20 mm, 25 mm
- Wall thickness ranges: 0.9 mm – 1.2 mm
- Dripper spacing adjustable: Fully adjustable, up to 10 cm
- Production speed: 80–120+ m/min
- Centralized PLC control with real-time monitoring
- Remote access and support capability
- Quick changeovers, energy-efficient operation
- Assisted by expert service and global spare parts delivery

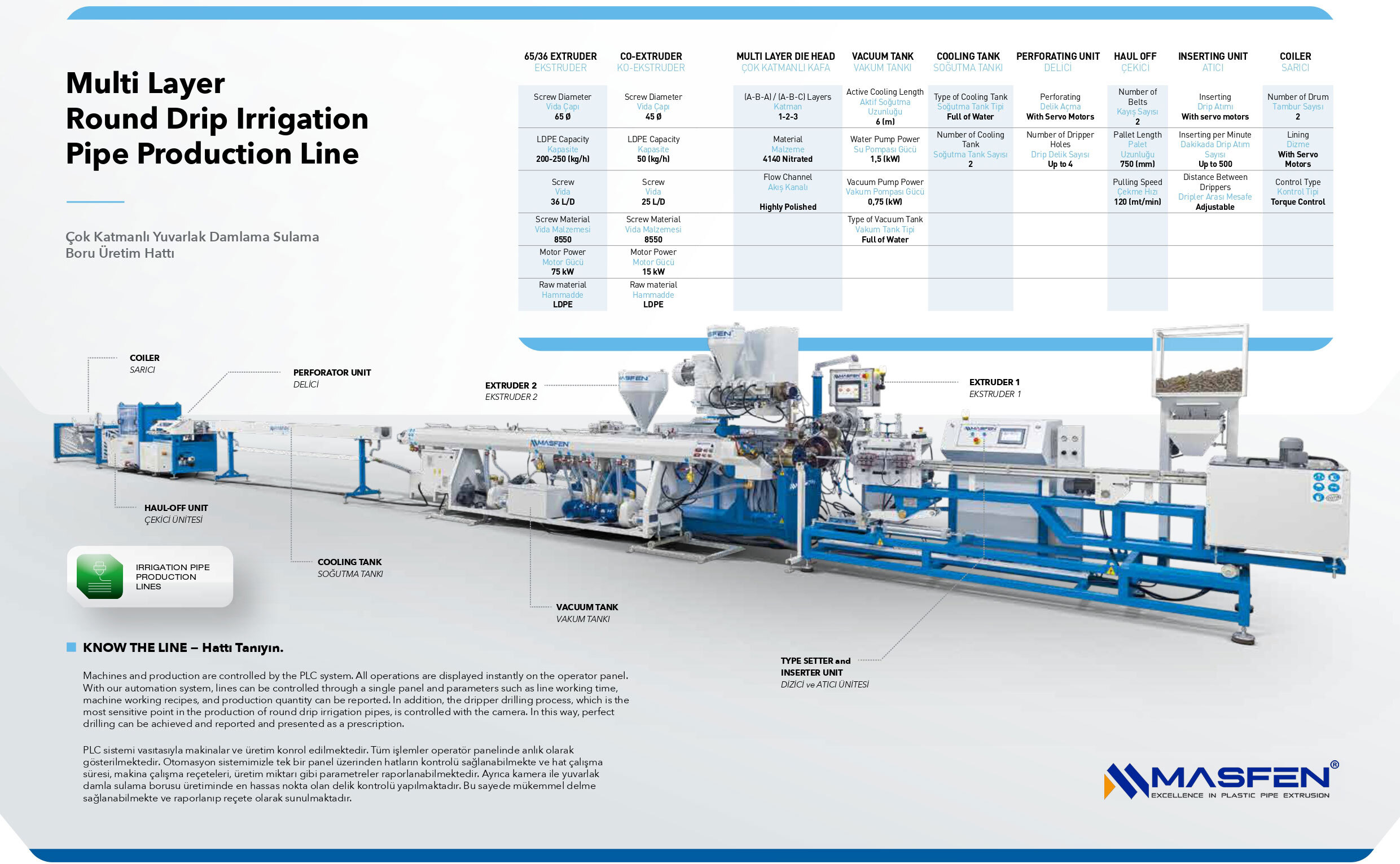

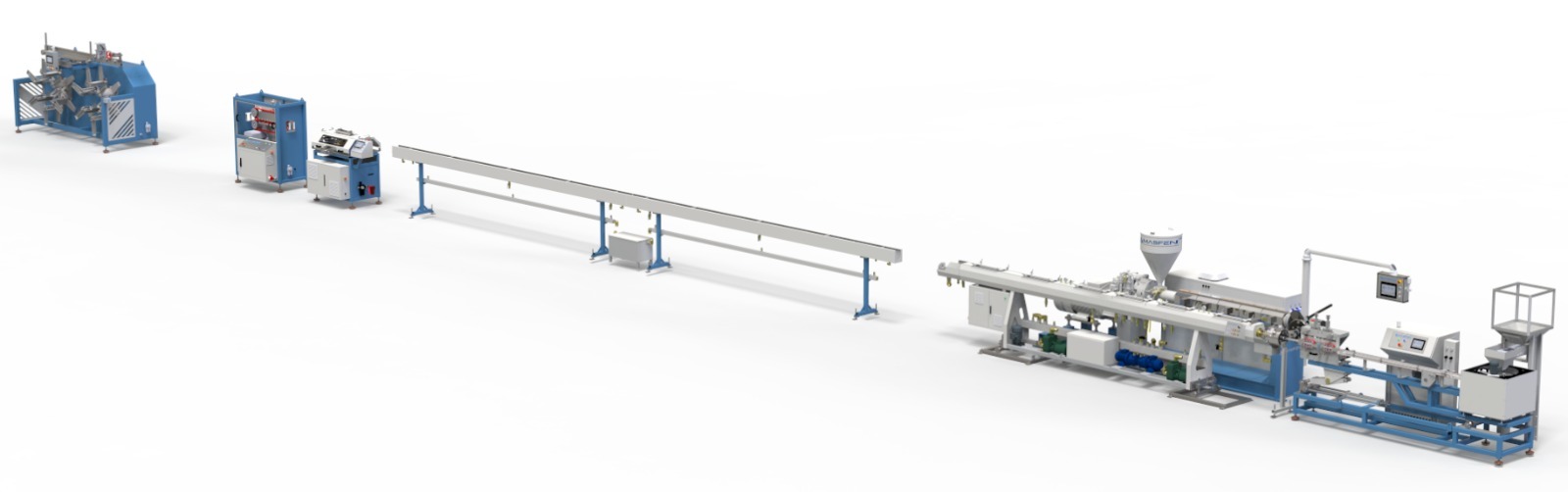

Round Drip Irrigation Pipe Production Line
Firmamız teknolojinin son imkanlarını kullanarak. maksimum ürün kapasitesi, minumum enerji sarfiyatı göz önünde bulundurarak yuvarlak damla sulama borusu üretim hatları imalatı yapmaktadır. Damlama hatlarımızda drip diziciden başlayarak, boruyu sarma işlemine kadar tüm işlemler sensörler tarafından anlık olarak takip edilmekte ve operatör panelinde gösterilmektedir. Hattımızda bulunan otomasyon sistemi sayesinde, operatör tek bir panel üzerinden hattaki tüm makineleri kontrolü, hat hızı, hat çalışma süresi, makine çalışma reçeteleri, üretim miktarı, makine çalışma reçeteleri gibi hattın çalışma parametrelerini raporlama özelliği bulunmaktadır.

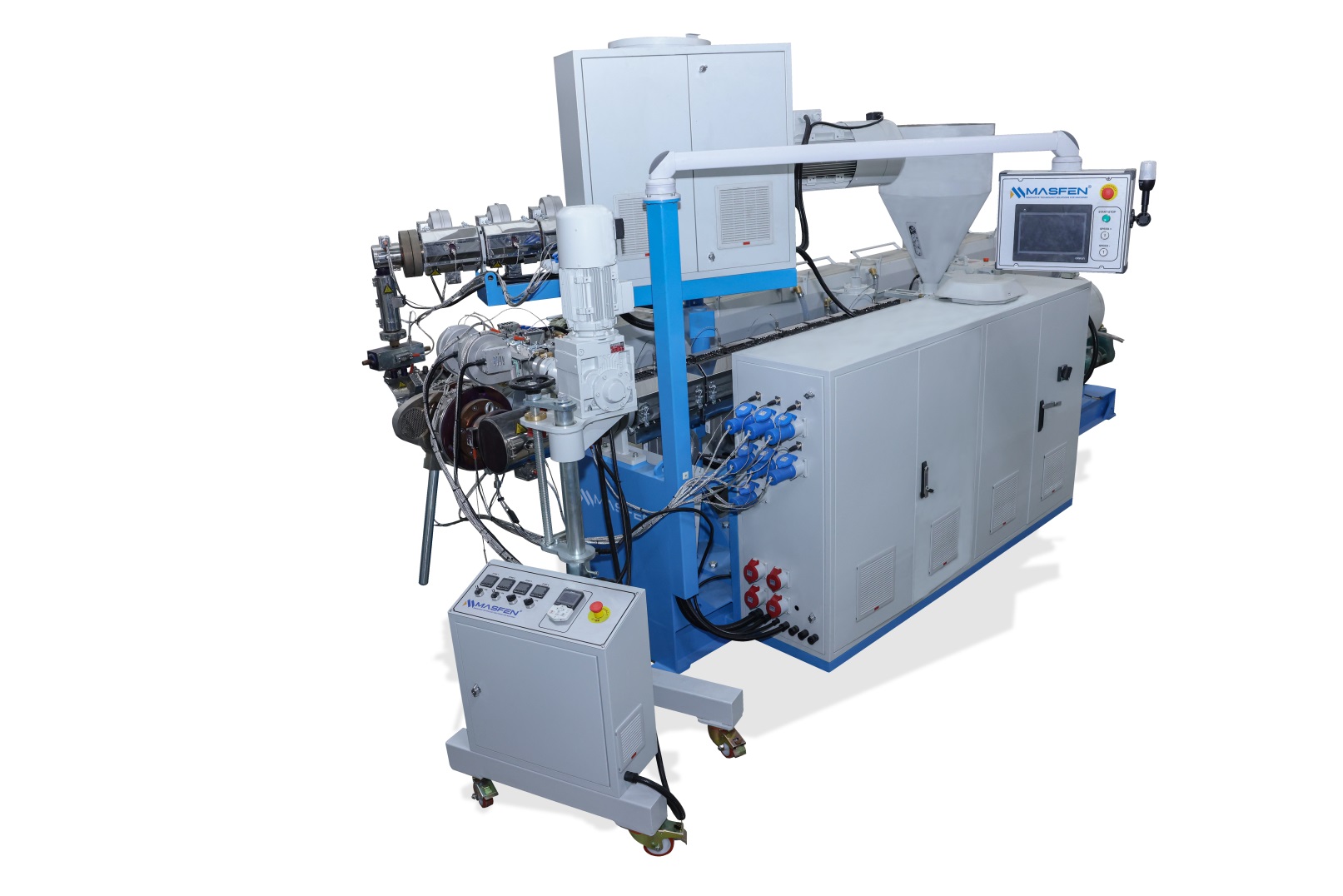

EXTRUDER

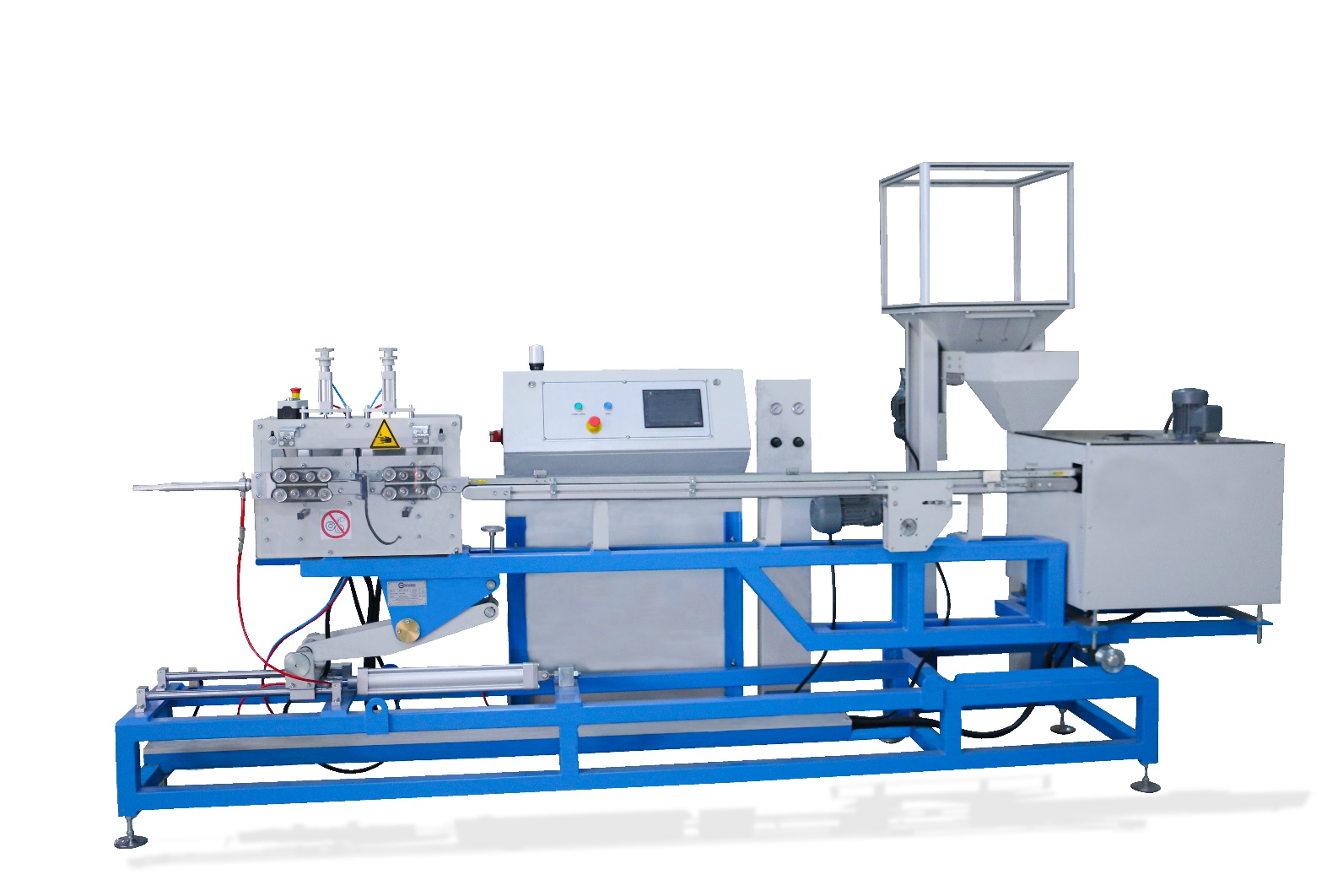

DRIPPER INSERTING UNIT

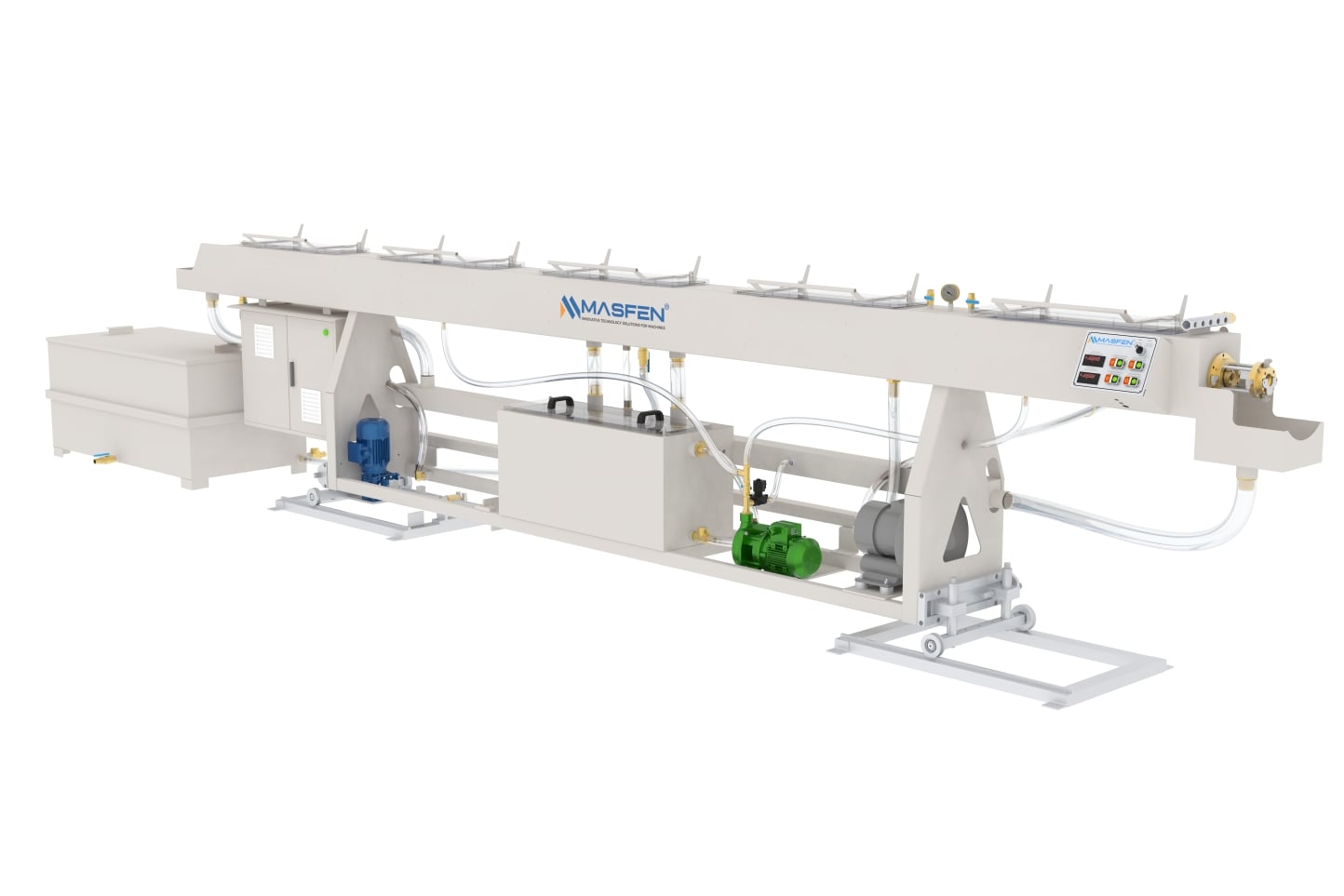

VACUUM TANK

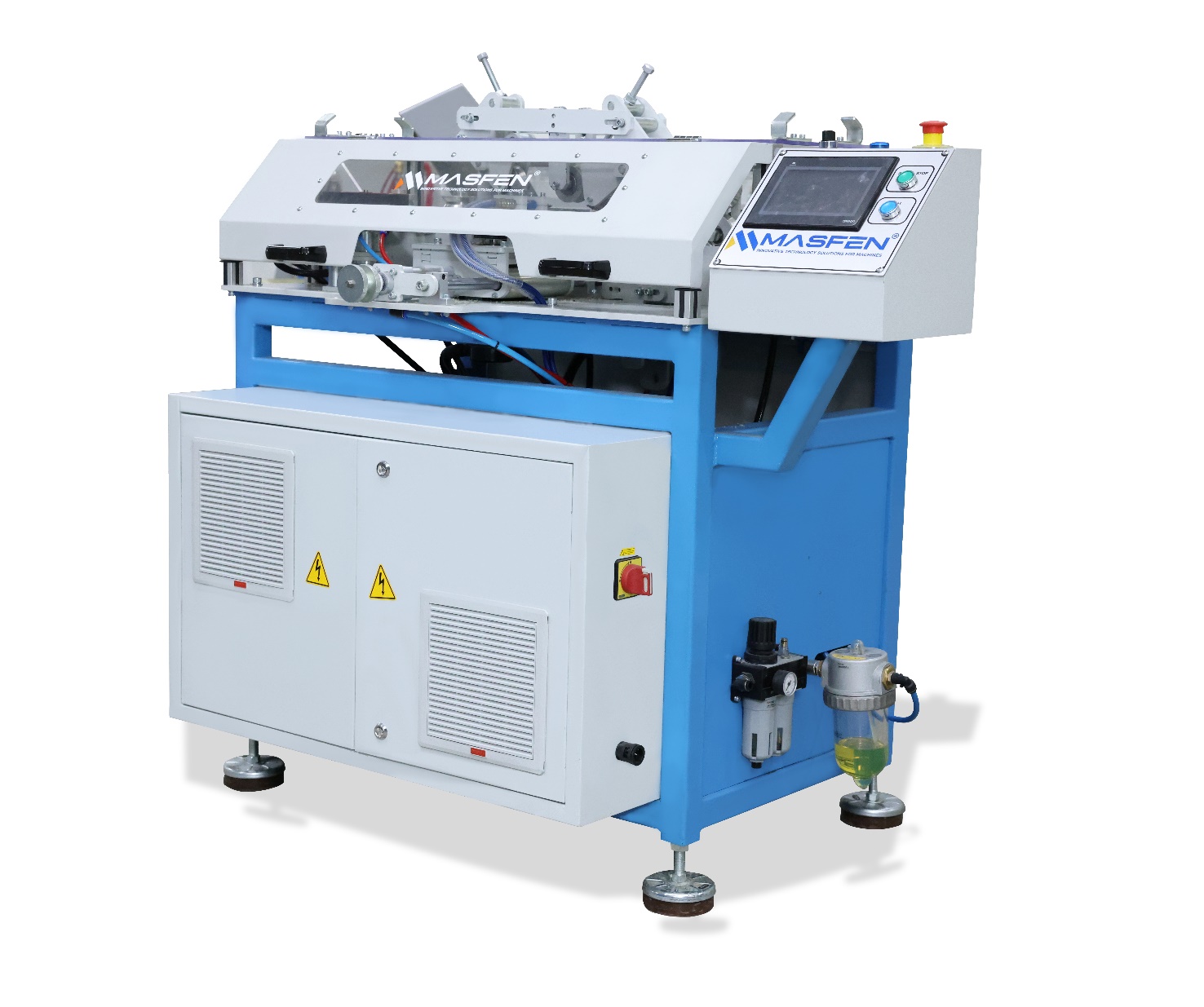

PUNCHING UNIT

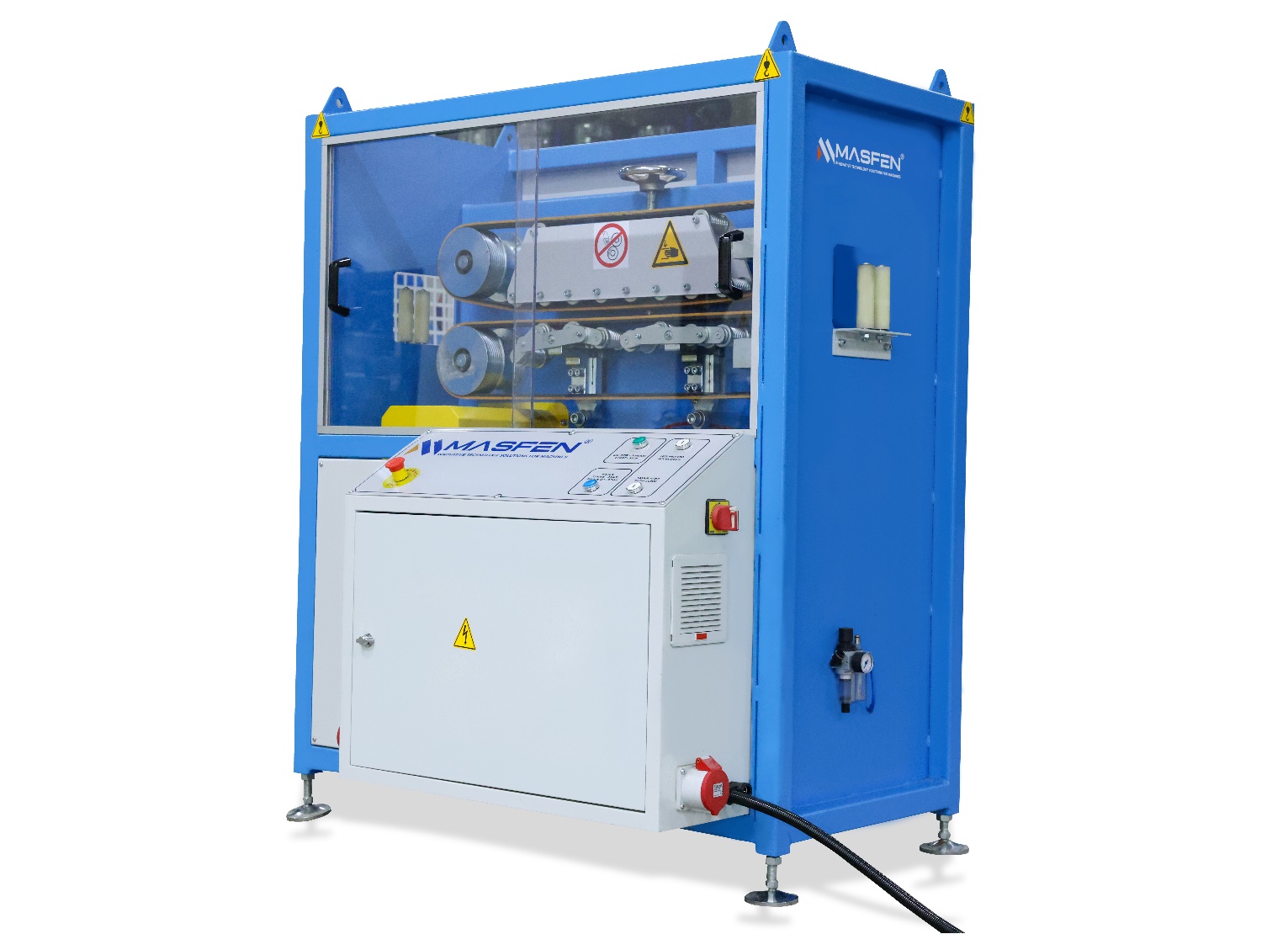

HAUL OFF

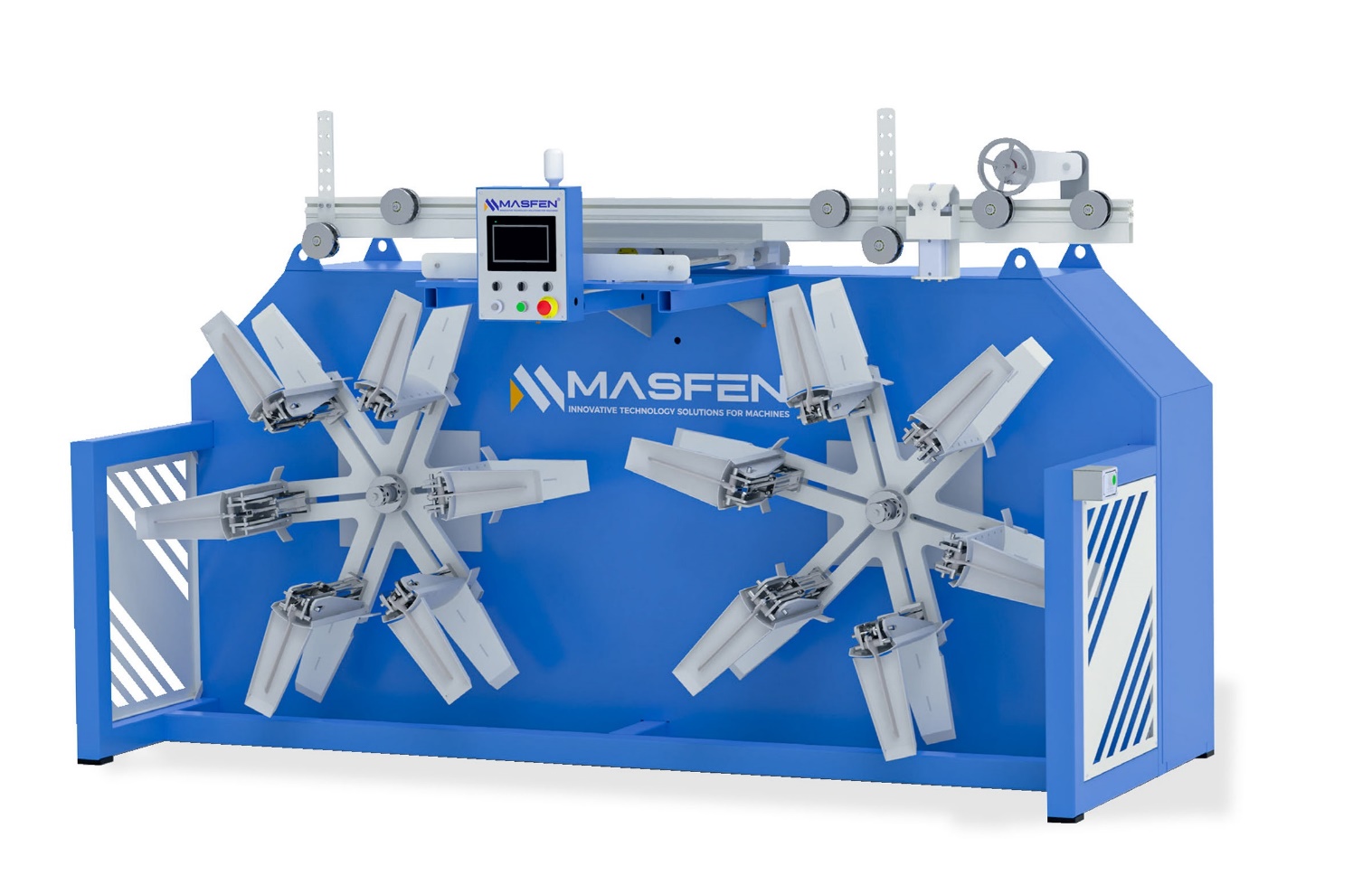

COILER
General FAQ's
Masfen Machinery plastic extrusion machinery serves a wide range of sectors, including telecommunications (microduct), agricultural irrigation (drip irrigation pipes), infrastructure (HDPE water and gas pipes), and domestic plumbing (PPR/PEX). As an extrusion line manufacturer, our solutions are engineered to comply with global industrial standards.
